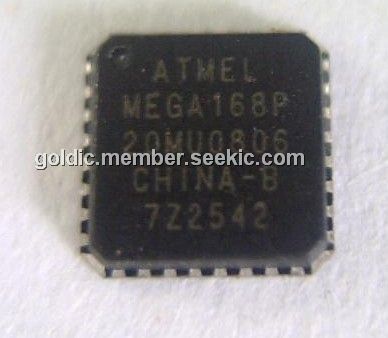

ATMEGA168P

8-bit Microcontroller, QFP, 6V, 40mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.75~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.75~5.00

PartNumber:: ATMEGA168P

Brand:: ATMEL Corporation - ATMEL | Pack: QFP | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Celest's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-06

From Other Seller

Part Number:ATMEGA168P
US $2.75 - 5.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ATMEGA168P is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA168P achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA168P absolute maximum ratings: (1)voltage on any pin except RESET with respect to ground: -0.5 to Vcc+0.5V;(2)storage temperature: -65 to 150℃;(3)operating temperature: -55 to 125℃;(4)voltage on RESET with respect to ground: -0.5 to 13.0V;(5)DC current per I/O pin: 40mA;(6)maximum operating voltage: 6.0V;(7)DC current Vcc and GND pins: 200mA.

Features

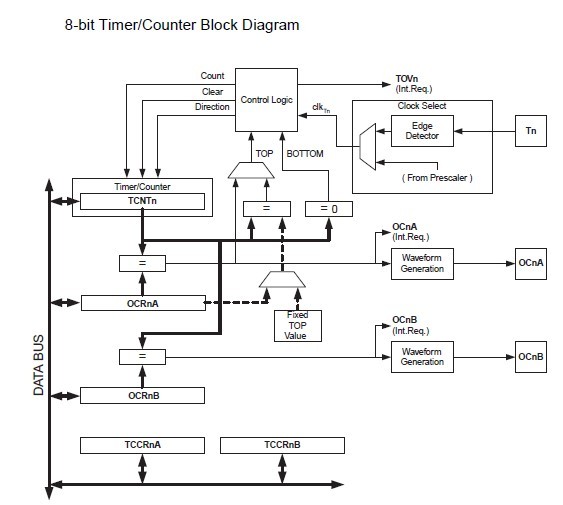

ATMEGA168P features:(1)131 powerful instructions - most single-clock cycle execution; (2)32 x 8 general purpose working registers; (3)fully static operation; (4)up to 20 MIPS Throughput at 20 MHz; (5)on-chip 2-cycle multiplier; (6)two 8-bit timer/counters with separate prescaler, one compare mode; (7)one 16-bit timer/counter with separate prescaler, compare mode, and capture mode; (8)real time counter with separate oscillator; (9)six PWM channels; (10)power-on reset and programmable brown-out detection; (11)internal calibrated oscillator; (12)external and internal interrupt sources.
