Product Summary
The DS1307Z+T is a serial real-time clock (RTC). It is a low-power; full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I2C, bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The DS1307Z+T is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12-hour format with AM/PM indicator. The DS1307Z+T has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply. Timekeeping operation continues while the part operates from the backup supply.
Parametrics
DS1307Z+T absolute maximum ratings: (1)Voltage Range on Any Pin Relative to Ground: -0.5V to +7.0V; (2)Operating Temperature Range (No condensing)Commercia: 0℃ to +70℃; Industria: -40℃ to +85℃; (3)Storage Temperature Range: -55℃ to +125℃; (4)Soldering Temperature (DIP, leads): +260℃ for 10 seconds.
Features
DS1307Z+T features: (1)Real-Time Clock (RTC) Counts Seconds, Minutes, Hours, Date of the Month, Month, Day of the week, and Year with Leap-Year; (2)Compensation Valid Up to 2100; (3)56-Byte, Battery-Backed, Nonvolatile (NV) RAM for Data Storage; (4)I2C Serial Interface; (5)Programmable Square-Wave Output Signal; (6)Automatic Power-Fail Detect and Switch Circuitry; (7)Consumes Less than 500nA in Battery-Backup Mode with Oscillator Running; (8)Optional Industrial Temperature Range: -40℃ to +85℃; (9) Available in 8-Pin Plastic DIP or SO; (10) Underwriters Laboratory (UL) Recognized.

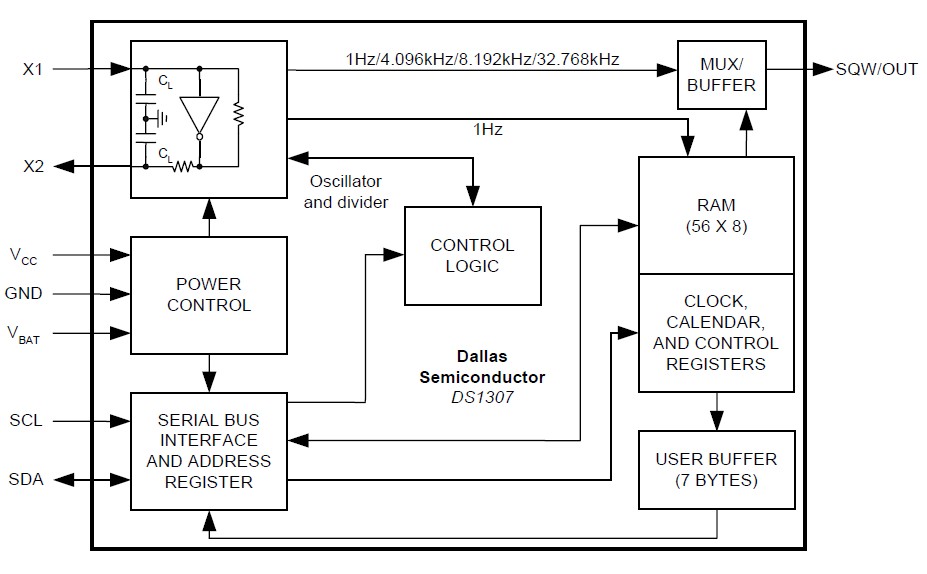

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS1307Z+T&R |
Maxim Integrated Products |
Real Time Clock 64x8 Serial I2C RTC |
Data Sheet |
|
|
||||||||
 |
DS1307Z+T&R/C01 |
Maxim Integrated Products |
Real Time Clock 64x8 Serial I2C RTC |
Data Sheet |
|
|
||||||||
 |
DS1307Z+TR |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
