Product Summary

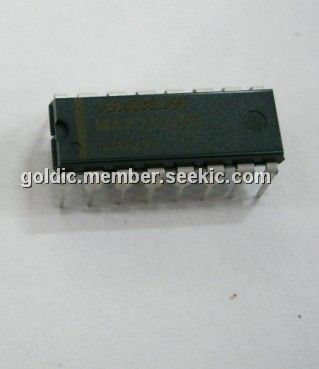

The max232cpe is a 5V-powered, multichannel RS-232 driver/receiver. The max232cpe line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The parts of the max232cpe are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The max232cpe uses no external components and are recommended for applications where printed circuit board space is critical.
Parametrics
max232cpe absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages; (5)TIN: -0.3V to (VCC - 0.3V); (6)RIN: ±30V; (7)TOUT: ±15V; (8)Output Voltages TOUT: ±15V; (9)ROUT: -0.3V to (VCC + 0.3V); (10)Driver/Receiver Output Short Circuited to GND: Continuous; (11)Continuous Power Dissipation (TA = +70℃)16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10s): +300℃.
Features
max232cpe features: (1)For Low-Voltage, Integrated ESD Applications; (2)For Low-Cost Applications.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX232CPE |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
|
MAX232CPE+ |
Maxim Integrated Products |
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver |
Data Sheet |
|
|
||||||||||||
