Product Summary

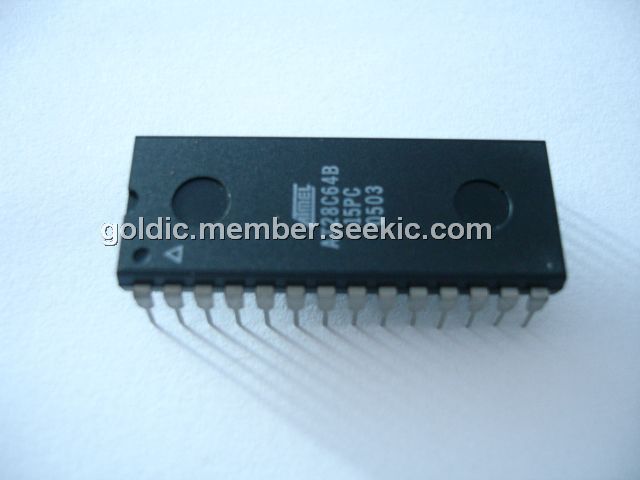

The AT28C648-15PU is a 64K CMOS E2PROM. The AT28C648-15PU is a low-power, high-performance 8,192 words by 8 bit nonvolatile Electrically Erasable and Programmable Read Only Memory with popular, easy to use features. The AT28C648-15PU is manufactured with Atmel’s reliable nonvolatile technology.
Parametrics
AT28C648-15PU absolute maximum ratings: (1)Temperature Under Bias: -55℃ to +125℃; (2)Storage Temperature: -65℃ to +150℃; (3)All Input Voltages (including NC Pins) with Respect to Ground: -0.6V to +6.25V; (4) All Output Voltages with Respect to Ground: -0.6V to VCC + 0.6V; (5) Voltage on OE and A9 with Respect to Ground: -0.6V to +13.5V.
Features
AT28C648-15PU features: (1)Fast Read Access Time - 120 ns; (2)Fast Byte Write - 200 ms or 1 ms; (3)Self-Timed Byte Write Cycle: Internal Address and Data Latches, ; (4)Internal Control Timer, Automatic Clear Before Write; (5)Direct Microprocessor Control, READY/BUSY Open Drain Output, DATA Polling; (6)Low Power: 30mA Active Current, 100mA CMOS Standby Current; (7)High Reliability: Data Retention: 10 Years; (8)5V±10% Supply; (9)CMOS and TTL Compatible Inputs and Outputs; (10)JEDEC Approved Byte-Wide Pinout; (11)Commercial and Industrial Temperature Ranges.
Diagrams
 |
