Product Summary

The LM324M is an independent, high gain, internally frequency compensated operational amplifier which is designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain of LM324M is independent of the magnitude of the power supply voltage.

Parametrics

LM324M absolute maximum ratings: (1)Supply Voltage, V+: 32V; (2)Differential Input Voltage: 32V; (3)Input Voltage: -0.3V to +32V; (4)Input Current (VIN < -0.3V): 50 mA; (5)Power Dissipation: Molded DIP 1130 mW, Cavity DIP 1260 mW; (6)Small Outline Package: 800 mW; (7)Output Short-Circuit to GND (One Amplifier): V+ ≤ 15V and TA = 25℃ Continuous Continuous; (8)Operating Temperature Range: -40℃ to +85℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (Soldering, 10 seconds): 260℃.

Features

LM324M features: (1)Internally frequency compensated for unity gain; (2)Large DC voltage gain 100 dB; (3)Wide bandwidth (unity gain) 1 MHz (temperature compensated); (4)Wide power supply range: Single supply 3V to 32V or dual supplies ±1.5V to ±16V; (5)Very low supply current drain (700 μA)—essentially independent of supply voltage; (6)Low input biasing current 45 nA (temperature compensated); (7)Low input offset voltage 2 mV and offset current: 5 nA; (8)Input common-mode voltage range includes ground; (9)Differential input voltage range equal to the power supply voltage; (10)Large output voltage swing 0V to V+ - 1.5V.

Diagrams

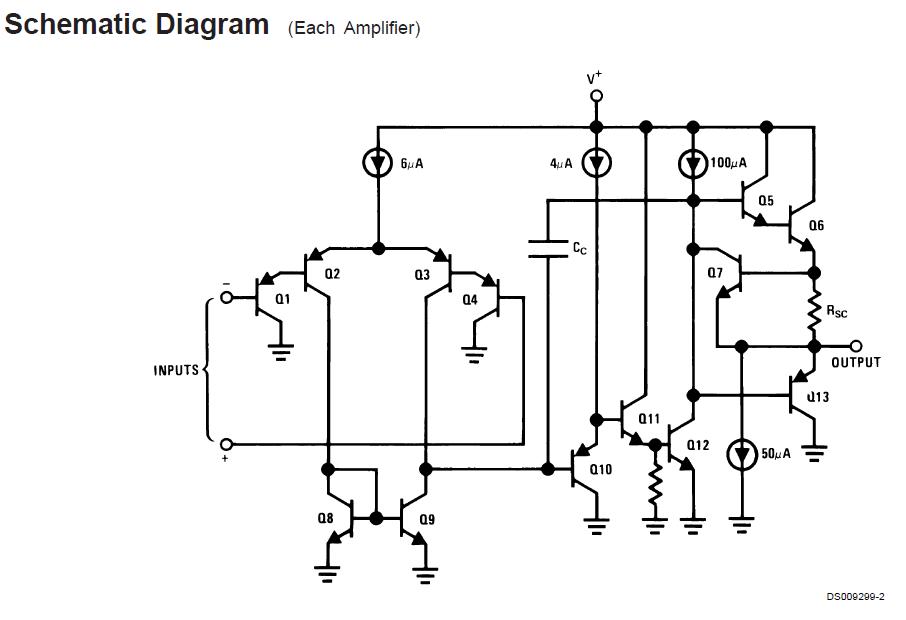

LM324M block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

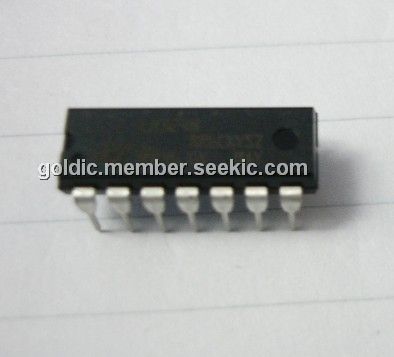

LM324M
LM324M
Fairchild Semiconductor
Operational Amplifiers - Op Amps Quad Operational Amp
Data Sheet
0-1: $0.23
1-25: $0.19
25-100: $0.17
100-250: $0.14
LM324M/NOPB
LM324M/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP
Data Sheet
0-1: $0.58
1-25: $0.46
25-100: $0.40
100-250: $0.35
LM324MT
LM324MT
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-752: $0.56
752-1034: $0.44
1034-2538: $0.41
2538-5076: $0.39
LM324MT/NOPB
LM324MT/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.84
1-25: $0.67
25-100: $0.59
100-250: $0.52
LM324MTX
LM324MTX
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-2500: $0.41
2500-5000: $0.39
5000-10000: $0.38
LM324MTX/NOPB
LM324MTX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps
Data Sheet
0-1: $0.91
1-25: $0.72
25-100: $0.65
100-250: $0.56
LM324MX
LM324MX
Fairchild Semiconductor
Operational Amplifiers - Op Amps SOP-14 Quad Op Amp
Data Sheet
0-1: $0.34
1-25: $0.23
25-100: $0.18
100-250: $0.15
LM324MX/NOPB
LM324MX/NOPB
National Semiconductor (TI)
Operational Amplifiers - Op Amps LOW PWR QUAD OP AMP
Data Sheet
0-1: $0.62
1-25: $0.49
25-100: $0.44
100-250: $0.38
